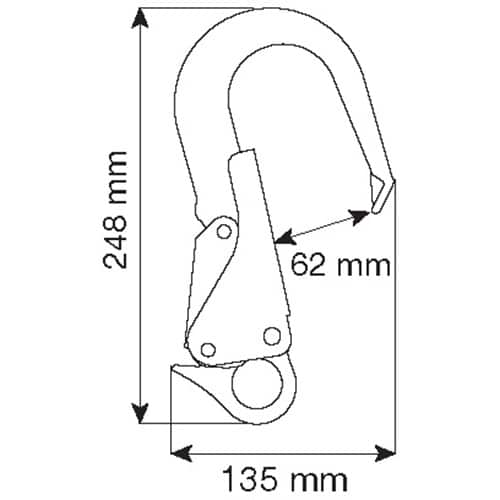

ANSI HOOK 62 mm – Hook
High strength aluminium alloy connector for use on metal structures. Large opening for connecting to beams and tubes up to 62 mm.
ANSI and CSA certified with 16 kN / 3600 lbs gate strength.
Double lever locking system ensures a high level of safety and ease of of use.
| Ref. | Product name | Weight |  |
 |
 |
 |
 |
Material |  |
 |
 |
|
| g | oz | kN | kN | mm | mm | mm | EN 362 | Z359.12 | Z259.12 | |||
| 2148 | ANSI HOOK 62 mm | 625 | 22.1 | 23 | 16 | 62 | 248 | 135 | Aluminum alloy | A | • | • |
