FLYTE – Pulley
Linear double pulley with stainless steel wheels. Sealed ball bearings for low friction and increased speed. Specifically conceived for crossing cables and zip lines.
Accommodates ropes up to 13 mm and steel cables up to 12 mm in diameter.
Large main attachment hole and secondary attachment point on top.
Working load limit: 10 kN
Breaking load: 20 kN
| Ref. | Product name | Weight | Inner sheave diameter | Rope diameter Max | Cable diameter Max | Working load Max | Breaking load | Ball bearings | Sheave material |  |
|||
| g | oz | mm | mm | mm | kN | LBF | kN | LBF | EN 12278 | ||||
| 3121 | FLYTE | 280 | 9.9 | 21 | 13 | 12 | 10 kN | 2248 LBF | 20 | 4497 | • | Stainless steel | • |
Related Products
-

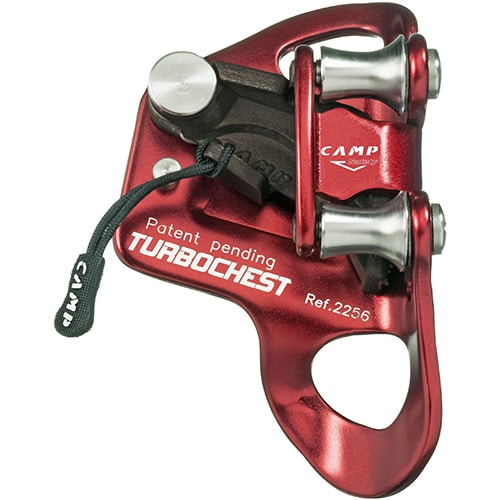

TURBOCHEST – Chest ascender
