OVAL QUICK LINK STAINLESS – Quick link
Oval quick links for high strength fixed connections. Manufactured from stainless steel for outdoor installations or corrosive environments.

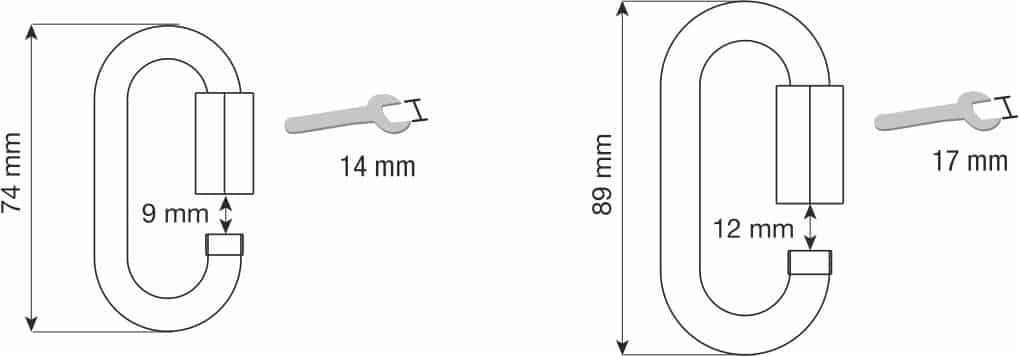

Available in two sizes: 8 mm rod (requires 14 mm open-end wrench) or 10 mm rod (requires 17 mm open-end wrench).
| Ref. | Product name | Weight |  |
 |
 |
 |
 |
Material |  |
 |
||
| g | oz | kN | kN | mm | mm | mm | EN 12275 | EN 362 | ||||
| 0939 | OVAL QUICK LINK STAINLESS 8 mm | 76 | 2.7 | 50 | 10 | 9 | 74 | 39 | Stainless steel | Q | Q | • |

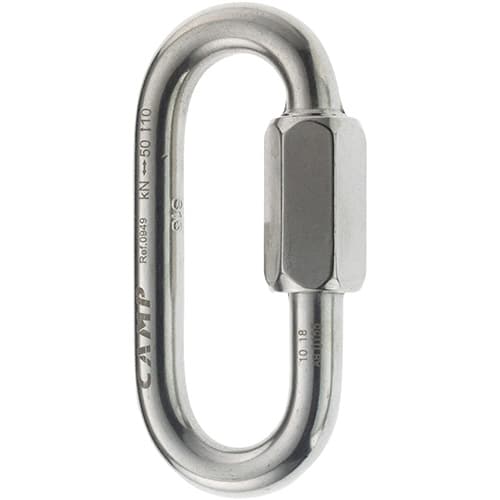

| 0949 | OVAL QUICK LINK STAINLESS 10 mm | 145 | 5.1 | 50 | 10 | 12 | 89 | 47 | Stainless steel | Q | Q | • |
Related Products
-
OVAL XL LOCK – Carabiner
Aluminum alloy oval shaped carabiner specifically developed for technical applications. Its sophisticated I-Beam construction optimally combines strength and lightweight. The wide opening and specific shape make it ideal for use with descenders, ascenders and pulleys. Keylock closure prevents snagging during use. Screw gate locking system.
-
HOOK 110 mm – Hook
Aluminum alloy connector with a very wide gate opening for use on beams and tubes up to 110 mm. Double lever locking system ensures a high level of safety and ease of of use.
-

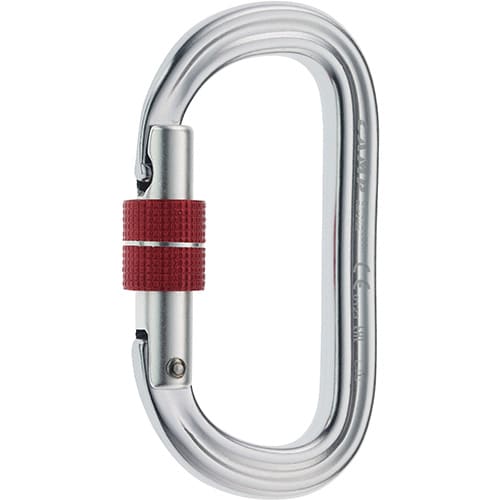

OVAL PRO LOCK – Carabiner
